Ingenia MR system

Ingenia 1.5T CX

MR system

Bekijk soortgelijke producten

Break new ground in throughput, efficiency, and quality with the power of digital broadband MRI. Enjoy a low total cost of ownership with Philips Ingenia 1.5T CX. Deliver fast, high quality imaging that may help attract new referrals and increase patient satisfaction.

Neem contact op

Media galerij

Kenmerken
dStream
dStream

dStream

High quality images and remarkable speed are possible with our dStream digital broadband architecture. Enjoy up to 40% more SNR⁵ and enhanced throughput with channel-independent RF technology that makes upgrades easy.
iPatient
iPatient

iPatient

Every patient is different. iPatient is an advanced platform for our Ingenia systems that puts you in control of personalized, patient-centric imaging to support greater consistency and efficiency. iPatient offers as much as a 30% improvement in throughput⁷.
Premium IQ⁶
Premium IQ⁶

Premium IQ⁶

Premium IQ defined as increased SNR and speed and improved fat-free and motion-free imaging obtained on dStream with dS SENSE, mDixon and Multivane XD compared to Achieva with SENSE, dixon and propeller. Maximize critical diagnostic information within the available timeslot.
ScanWise Implant
ScanWise Implant

ScanWise Implant

ScanWise Implant allows you to confidently offer MR imaging to a growing and potentially underserved subset of the patient population, enhancing your reputation and encouraging referrals.
A magnet for new referrals
A magnet for new referrals

A magnet for new referrals

Premium fat-free,¹ premium motion-free² images for routine, as well as advanced neuro, onco, and cardiac exams expand your diagnostic opportunities and bring new referrals to your door.
Up to 30% higher throughput³
Up to 30% higher throughput³

Up to 30% higher throughput³

Make nearly every exam fast by imaging with fewer or shorter breathholds thanks to dStream digital technology and dS SENSE acceleration. Shorten setup time with our integrated Posterior coil – all you need for 60% of routine exams.⁴
Making every minute count
Making every minute count

Making every minute count

Eliminate up to 50% of repetitive tasks from your scanning workflow with iPatient⁷. Many processes can be done with just one click: move to isocenter and start exam, position slices on target, automatic coil and element selection to name a few.
Enhanced diagnostic information
Enhanced diagnostic information

Enhanced diagnostic information

dStream digital broadband technology delivers up to 40% more SNR⁵, raising your standard of care for brain, spine, musculoskeletal, and other MRI exams. Enhance your diagnostic information, every time, within the available time slot with dStream digital clarity.
  • dStream
  • iPatient
  • Premium IQ⁶
  • ScanWise Implant
See all features
dStream
dStream

dStream

High quality images and remarkable speed are possible with our dStream digital broadband architecture. Enjoy up to 40% more SNR⁵ and enhanced throughput with channel-independent RF technology that makes upgrades easy.
iPatient
iPatient

iPatient

Every patient is different. iPatient is an advanced platform for our Ingenia systems that puts you in control of personalized, patient-centric imaging to support greater consistency and efficiency. iPatient offers as much as a 30% improvement in throughput⁷.
Premium IQ⁶
Premium IQ⁶

Premium IQ⁶

Premium IQ defined as increased SNR and speed and improved fat-free and motion-free imaging obtained on dStream with dS SENSE, mDixon and Multivane XD compared to Achieva with SENSE, dixon and propeller. Maximize critical diagnostic information within the available timeslot.
ScanWise Implant
ScanWise Implant

ScanWise Implant

ScanWise Implant allows you to confidently offer MR imaging to a growing and potentially underserved subset of the patient population, enhancing your reputation and encouraging referrals.
A magnet for new referrals
A magnet for new referrals

A magnet for new referrals

Premium fat-free,¹ premium motion-free² images for routine, as well as advanced neuro, onco, and cardiac exams expand your diagnostic opportunities and bring new referrals to your door.
Up to 30% higher throughput³
Up to 30% higher throughput³

Up to 30% higher throughput³

Make nearly every exam fast by imaging with fewer or shorter breathholds thanks to dStream digital technology and dS SENSE acceleration. Shorten setup time with our integrated Posterior coil – all you need for 60% of routine exams.⁴
Making every minute count
Making every minute count

Making every minute count

Eliminate up to 50% of repetitive tasks from your scanning workflow with iPatient⁷. Many processes can be done with just one click: move to isocenter and start exam, position slices on target, automatic coil and element selection to name a few.
Enhanced diagnostic information
Enhanced diagnostic information

Enhanced diagnostic information

dStream digital broadband technology delivers up to 40% more SNR⁵, raising your standard of care for brain, spine, musculoskeletal, and other MRI exams. Enhance your diagnostic information, every time, within the available time slot with dStream digital clarity.
Clinical Case Map

MR Body Map



Clinical cases from nearly every anatomy



Explore 100+ clinical cases from your peers around the globe, that showcase how Philips MR digital technology strengthens your imaging needs.



Learn more

FieldStrength

FieldStrenght image
FieldStrength provides regular features and articles on magnetic resonance imaging. It serves as a resource for Philips MRI users to share solutions to their day-to-day challenges in MRI clinical practice.
Read articles

NetForum Community

NetForum Community
Visit our NetForum online community to share clinical experiences, optimize results, and learn from peers around the globe.
NetForum community

Find the right coil for your system



Ergonomic, digital and lightweight, our broad range of coils is available in multiple configurations. Learn more about our full range of coils below.
Coil Selector
Ingenia smal new

¹. Premium fat-free defined as mDIXON fat-free compared to Dixon fat-free (3-echo, fixed TE)

². Premium motion-free defined as MultiVane XD compared to Propeller correction (Pipe et al. A Revised Motion Estimation Algorithm for Propeller MRI, MRM August, 2014.)

³. Up to 30% higher throughput. Hinged upon the unique FlexCoverage Posterior coil that provides neck-to-toe coverage without the need for any manual removal or repositioning, iPatient enables imaging with fewer coils and reduces coil positioning and patient setup time

⁴. The integrated dStream coils (NVC and posterior) can cover all neuro and spine exams, adding up to >60% of overall MR procedure volume

⁵. Up to 40% more SNR compared to Achieva as non digital/dStream system
⁶. Premium IQ defined as increased SNR and speed and improved fat-free and motion-free imaging obtained on dStream with dS SENSE, mDIXON and MultiVane XD compared to Achieva with SENSE, Dixon and Propeller
⁷. Compared to Achieva

Technische specificaties

Site Planning
Site Planning
Total gantry installed weight
  • ≤ 2900 kg
Minimum siting requirement
  • 19.5 m²
Resolution parameters
Resolution parameters
Max. scan matrix
  • 1024 (2048 optional)
Highest in-plane resolution
  • 5 µm
Max. number of slices
  • 1024
iPatient efficiency assistance
iPatient efficiency assistance
SmartLink (package dependent)
  • Yes
SmartSelect
  • Yes
SmartStart
  • Yes
SmartExam (optional)
  • Yes
SmartLine (package dependent)
  • Yes
RF transmit
RF transmit
Number of independent RF amplifiers
  • 1
Output power
  • 18 kW
Parallel RF transmission
  • Yes
Pulsar HP+ gradients
Pulsar HP+ gradients
Max. amplitude for each axis
  • 33 mT/m
Max. slew rate for each axis
  • 120 T/m/s
dStream workflow
dStream workflow
FlexTrak Mammo mammography solution (optional)
  • Yes
FlexCoverage Posterior coil
  • Yes
FlexCoverage Anterior coils (optional)
  • Yes
FlexTrak patient transport system (optional)
  • Yes

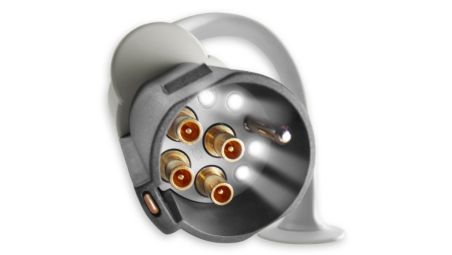

FlexConnect connectors
  • Yes
FlexTrak tabletop
  • Yes
FlexCaddy coil storage (optional)
  • Yes
Patient environment
Patient environment
Wireless patient physiological synchronization
  • Yes
Bore design
  • 60 cm
Various acoustic noise reduction solutions
  • Yes
Maximum weight capacity
  • 250 kg (550lbs)
Tunnel diameter at both ends
  • 110 cm
Flare on both ends
  • Yes
Patient transport system (optional)
  • FlexTrak
Magnet system
Magnet system
Cryogen boil-off rate under regular scanning conditions
  • 0 l /hr
Bore design
  • 60 cm
Magnet weight
  • 2900 kg
Typical homogeneity V-RMS
  • ≤ 0.5 ppm
HeliumSave technology (Zero boil-off)
  • Yes
dStream RF receive
dStream RF receive
Signal chain from connector to magnet
  • Digital
Signal chain from coil to reconstructor
  • Fully digital
Location of analog-to-digital converter (ADC)
  • Inside the coil
Signal chain from coil electronics to connector
  • Digital
Number of independent receive channels
  • Channel independent
Signal chain from magnet to reconstructor
  • Digital
Site Planning
Site Planning
Total gantry installed weight
  • ≤ 2900 kg
Minimum siting requirement
  • 19.5 m²
Resolution parameters
Resolution parameters
Max. scan matrix
  • 1024 (2048 optional)
Highest in-plane resolution
  • 5 µm
See all specifications
Site Planning
Site Planning
Total gantry installed weight
  • ≤ 2900 kg
Minimum siting requirement
  • 19.5 m²
Resolution parameters
Resolution parameters
Max. scan matrix
  • 1024 (2048 optional)
Highest in-plane resolution
  • 5 µm
Max. number of slices
  • 1024
iPatient efficiency assistance
iPatient efficiency assistance
SmartLink (package dependent)
  • Yes
SmartSelect
  • Yes
SmartStart
  • Yes
SmartExam (optional)
  • Yes
SmartLine (package dependent)
  • Yes
RF transmit
RF transmit
Number of independent RF amplifiers
  • 1
Output power
  • 18 kW
Parallel RF transmission
  • Yes
Pulsar HP+ gradients
Pulsar HP+ gradients
Max. amplitude for each axis
  • 33 mT/m
Max. slew rate for each axis
  • 120 T/m/s
dStream workflow
dStream workflow
FlexTrak Mammo mammography solution (optional)
  • Yes
FlexCoverage Posterior coil
  • Yes
FlexCoverage Anterior coils (optional)
  • Yes
FlexTrak patient transport system (optional)
  • Yes
FlexConnect connectors
  • Yes
FlexTrak tabletop
  • Yes
FlexCaddy coil storage (optional)
  • Yes
Patient environment
Patient environment
Wireless patient physiological synchronization
  • Yes
Bore design
  • 60 cm
Various acoustic noise reduction solutions
  • Yes
Maximum weight capacity
  • 250 kg (550lbs)
Tunnel diameter at both ends
  • 110 cm
Flare on both ends
  • Yes
Patient transport system (optional)
  • FlexTrak
Magnet system
Magnet system
Cryogen boil-off rate under regular scanning conditions
  • 0 l /hr
Bore design
  • 60 cm
Magnet weight
  • 2900 kg
Typical homogeneity V-RMS
  • ≤ 0.5 ppm
HeliumSave technology (Zero boil-off)
  • Yes
dStream RF receive
dStream RF receive
Signal chain from connector to magnet
  • Digital
Signal chain from coil to reconstructor
  • Fully digital
Location of analog-to-digital converter (ADC)
  • Inside the coil
Signal chain from coil electronics to connector
  • Digital
Number of independent receive channels
  • Channel independent
Signal chain from magnet to reconstructor
  • Digital
