Ingenia MR system

Ingenia 3.0T CX

MR system

Bekijk soortgelijke producten

We’ve designed Ingenia 3.0T CX with the performance that helps you explore with confidence, perform advanced clinical imaging that supports referrals, and conduct routine imaging efficiently. Thanks in part to exceptional Quasar Dual gradient performance. Your patients benefit from digital imaging that opens the door to personalized care.

Kenmerken
dStream
dStream

dStream

High quality images and remarkable speed are possible with our dStream digital broadband architecture. Enjoy up to 40% more SNR⁴ and enhanced throughput with channel-independent RF technology that makes upgrades easy.
iPatient
iPatient

iPatient

Every patient is different. iPatient is an advanced platform for our Ingenia systems that puts you in control of personalized, patient-centric imaging to support greater consistency and efficiency. iPatient offers as much as a 30% improvement in throughput².
Premium IQ¹
Premium IQ¹

Premium IQ¹

Premium IQ defined as increased SNR and speed and improved fat-free and motion-free imaging obtained on dStream with dS SENSE, mDixon and Multivane XD compared to Achieva with SENSE, dixon and propeller. Maximize critical diagnostic information within the available timeslot.
ScanWise Implant
ScanWise Implant

ScanWise Implant

ScanWise Implant allows you to confidently offer MR imaging to a growing and potentially underserved subset of the patient population, enhancing your reputation and encouraging referrals.
Enhance patient comfort
Enhance patient comfort

Enhance patient comfort

The ambient lighting and reduction of patient-perceived (in bore) noise enhance scanning comfort and support consistent exams.
Drive clinical performance
Drive clinical performance

Drive clinical performance

Use our Premium Image Quality¹ and the digital clarity and speed of dStream digital broadband MR to enhance diagnostic information, every time, within the available time slot.
Work at the forefront of clinical excellence
Work at the forefront of clinical excellence

Work at the forefront of clinical excellence

Explore new clinical pathways in oncology, neuroscience, and heart disease with our Advanced MRI capabilities.
Access high precision results
Access high precision results

Access high precision results

MultiTransmit 4D technology enhances image uniformity, consistency, and speed to promote high precision results.
Advanced MRI
Advanced MRI

Advanced MRI

Improve your referral base by expanding your diagnostic opportunities. Advanced diagnostic solutions increase the capabilities on MRI to cover emerging clinical indications in neurology, oncology, and cardiology.
  • dStream
  • iPatient
  • Premium IQ¹
  • ScanWise Implant
See all features
dStream
dStream

dStream

High quality images and remarkable speed are possible with our dStream digital broadband architecture. Enjoy up to 40% more SNR⁴ and enhanced throughput with channel-independent RF technology that makes upgrades easy.
iPatient
iPatient

iPatient

Every patient is different. iPatient is an advanced platform for our Ingenia systems that puts you in control of personalized, patient-centric imaging to support greater consistency and efficiency. iPatient offers as much as a 30% improvement in throughput².
Premium IQ¹
Premium IQ¹

Premium IQ¹

Premium IQ defined as increased SNR and speed and improved fat-free and motion-free imaging obtained on dStream with dS SENSE, mDixon and Multivane XD compared to Achieva with SENSE, dixon and propeller. Maximize critical diagnostic information within the available timeslot.
ScanWise Implant
ScanWise Implant

ScanWise Implant

ScanWise Implant allows you to confidently offer MR imaging to a growing and potentially underserved subset of the patient population, enhancing your reputation and encouraging referrals.
Enhance patient comfort
Enhance patient comfort

Enhance patient comfort

The ambient lighting and reduction of patient-perceived (in bore) noise enhance scanning comfort and support consistent exams.
Drive clinical performance
Drive clinical performance

Drive clinical performance

Use our Premium Image Quality¹ and the digital clarity and speed of dStream digital broadband MR to enhance diagnostic information, every time, within the available time slot.
Work at the forefront of clinical excellence
Work at the forefront of clinical excellence

Work at the forefront of clinical excellence

Explore new clinical pathways in oncology, neuroscience, and heart disease with our Advanced MRI capabilities.
Access high precision results
Access high precision results

Access high precision results

MultiTransmit 4D technology enhances image uniformity, consistency, and speed to promote high precision results.
Advanced MRI
Advanced MRI

Advanced MRI

Improve your referral base by expanding your diagnostic opportunities. Advanced diagnostic solutions increase the capabilities on MRI to cover emerging clinical indications in neurology, oncology, and cardiology.

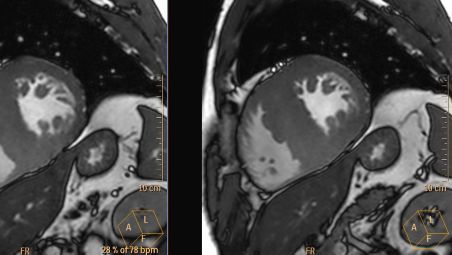

MultiTransmit 4D
Promotes high precision results



Using multiple RF sources, MultiTransmit adapts the RF signals to suit each individual patient. You get faster scans, enhanced image uniformity/consistency, over a broader range of applications be it body, breast, spine, or pediatrics.

Clinical Case Map

MR Body Map



Clinical cases from nearly every anatomy



Explore 100+ clinical cases from your peers around the globe, that showcase how Philips MR digital technology strengthens your imaging needs.



Learn more



FieldStrength

FieldStrenght image
FieldStrength provides regular features and articles on magnetic resonance imaging. It serves as a resource for Philips MRI users to share solutions to their day-to-day challenges in MRI clinical practice.

NetForum Community

NetForum Community
Visit our NetForum online community to share clinical experiences, optimize results, and learn from peers around the globe.

Find the right coil for your system



Ergonomic, digital and lightweight, our broad range of coils is available in multiple configurations. Learn more about our full range of coils below.

Ingenia smal new

Technische specificaties

Site Planning
Site Planning
Total gantry installed weight
  • ≤ 5800 kg
Minimum siting requirement
  • 30 m²
iPatient efficiency assistance
iPatient efficiency assistance
SmartLink (package dependent)
  • Yes
SmartStart
  • Yes
SmartSelect
  • Yes
SmartLine (package dependent)
  • Yes
SmartExam (optional)
  • Yes
Resolution parameters
Resolution parameters
Max. scan matrix
  • 1024 (2048 optional)
Max. number of slices
  • 1024
Highest in-plane resolution
  • 5 μm
RF transmit
RF transmit
Number of independent RF amplifiers
  • 2
Output power
  • 2 x 18 kW
Parallel RF transmission
  • Yes
dStream workflow
dStream workflow
FlexTrak Mammo mammography solution (optional)
  • Yes
FlexCoverage Posterior coil
  • Yes
FlexTrak patient transport system (optional)
  • Yes
FlexCoverage Anterior coils (optional)
  • Yes
FlexConnect connectors
  • Yes
FlexTrak tabletop
  • Yes
FlexCaddy coil storage (optional)
  • Yes
Quasar Dual gradients
Quasar Dual gradients
Max. sustained power per axis
  • 60 kW
Max. slew rate for each axis
  • 200 T/m/s
Max. amplitude for each axis
  • 80 mT/m
Patient environment
Patient environment
Various acoustic noise reduction solutions
  • Yes
Bore design
  • 60 cm
Wireless patient physiological synchronization
  • Yes
Maximum weight capacity
  • 250 kg (550lbs)
Tunnel flare
  • 110 cm
Patient trasnport system (optional)
  • FlexTrak
Maximum weight capacity
  • 250 kg (550 lbs)
Patient transport system (optional)
  • FlexTrak
Flare on both ends
  • Yes
dStream RF receive
dStream RF receive
Signal chain from connector to magnet
  • Digital
Location of analog-to-digital converter (ADC)
  • Inside the coil
Signal chain from coil electronics to connector
  • Digital
Signal chain from magnet to reconstructor
  • Digital
Number of independent receive channels
  • Channel independent
Signal chain from coil to reconstructer
  • Fully digital
Xtend magnet system
Xtend magnet system
Maximum FOV
  • 50 cm
HeliumSave technology (Zero boil-off)
  • Yes
Bore design
  • 60 cm
Cryogen boil-off rate under regular scanning conditions
  • 0 l /hr
Typical homogeneity at 40 cm DSV
  • ≤ 0.57 ppm
Magnet weight
  • 4500 kg
Site Planning
Site Planning
Total gantry installed weight
  • ≤ 5800 kg
Minimum siting requirement
  • 30 m²
iPatient efficiency assistance
iPatient efficiency assistance
SmartLink (package dependent)
  • Yes
SmartStart
  • Yes
See all specifications
Site Planning
Site Planning
Total gantry installed weight
  • ≤ 5800 kg
Minimum siting requirement
  • 30 m²
iPatient efficiency assistance
iPatient efficiency assistance
SmartLink (package dependent)
  • Yes
SmartStart
  • Yes
SmartSelect
  • Yes
SmartLine (package dependent)
  • Yes
SmartExam (optional)
  • Yes
Resolution parameters
Resolution parameters
Max. scan matrix
  • 1024 (2048 optional)
Max. number of slices
  • 1024
Highest in-plane resolution
  • 5 μm
RF transmit
RF transmit
Number of independent RF amplifiers
  • 2
Output power
  • 2 x 18 kW
Parallel RF transmission
  • Yes
dStream workflow
dStream workflow
FlexTrak Mammo mammography solution (optional)
  • Yes
FlexCoverage Posterior coil
  • Yes
FlexTrak patient transport system (optional)
  • Yes
FlexCoverage Anterior coils (optional)
  • Yes
FlexConnect connectors
  • Yes
FlexTrak tabletop
  • Yes
FlexCaddy coil storage (optional)
  • Yes
Quasar Dual gradients
Quasar Dual gradients
Max. sustained power per axis
  • 60 kW
Max. slew rate for each axis
  • 200 T/m/s
Max. amplitude for each axis
  • 80 mT/m
Patient environment
Patient environment
Various acoustic noise reduction solutions
  • Yes
Bore design
  • 60 cm
Wireless patient physiological synchronization
  • Yes
Maximum weight capacity
  • 250 kg (550lbs)
Tunnel flare
  • 110 cm
Patient trasnport system (optional)
  • FlexTrak
Maximum weight capacity
  • 250 kg (550 lbs)
Patient transport system (optional)
  • FlexTrak
Flare on both ends
  • Yes
dStream RF receive
dStream RF receive
Signal chain from connector to magnet
  • Digital
Location of analog-to-digital converter (ADC)
  • Inside the coil
Signal chain from coil electronics to connector
  • Digital
Signal chain from magnet to reconstructor
  • Digital
Number of independent receive channels
  • Channel independent
Signal chain from coil to reconstructer
  • Fully digital
Xtend magnet system
Xtend magnet system
Maximum FOV
  • 50 cm
HeliumSave technology (Zero boil-off)
  • Yes
Bore design
  • 60 cm
Cryogen boil-off rate under regular scanning conditions
  • 0 l /hr
Typical homogeneity at 40 cm DSV
  • ≤ 0.57 ppm
Magnet weight
  • 4500 kg
  • ¹. Premium Image Quality (IQ) defined as increased SNR and speed and improved fat-free and motion-free imaging obtained on dStream with dS SENSE, mDIXON and MultiVane XD compared to Achieva with SENSE, Dixon and Propeller
  • ². Hinged upon the unique FlexCoverage Posterior coil that provides neck-to-toe coverage without the need for any manual removal or repositioning, FlexStream enables imaging with fewer coils and reduces coil positioning and patient setup time.
  • ³, ⁴. Up to 40% more SNR compared to Achieva as non-digital/dStream system.
